3D Printing Guide: Material Selection, Tolerances & Costs
Byadmin
3D printing has become a core manufacturing tool for accelerating new product introduction, validating complex geometry, and producing functional components without mold tooling. For Senior Mechanical Engineers, Product Designers, NPI Managers, and Procurement Professionals, the real challenge is no longer deciding whether additive manufacturing is useful. It is selecting the right process, material, tolerance strategy, and production quantity for the intended test.
A successful program must distinguish between visual prototypes, engineering prototypes, validation parts, and bridge-production components. An SLA model may be ideal for a smooth medical enclosure, while SLS nylon may be better for snap fits and repeated handling. Metal additive manufacturing can produce high-performance geometry, but CNC machining may still be the more predictable choice for tight fits and heavily loaded components.
This guide provides a practical framework for material selection, dimensional accuracy, process comparison, low-volume cost control, supplier evaluation, and application planning across medical devices, aerospace, automotive, robotics, consumer electronics, and industrial equipment.

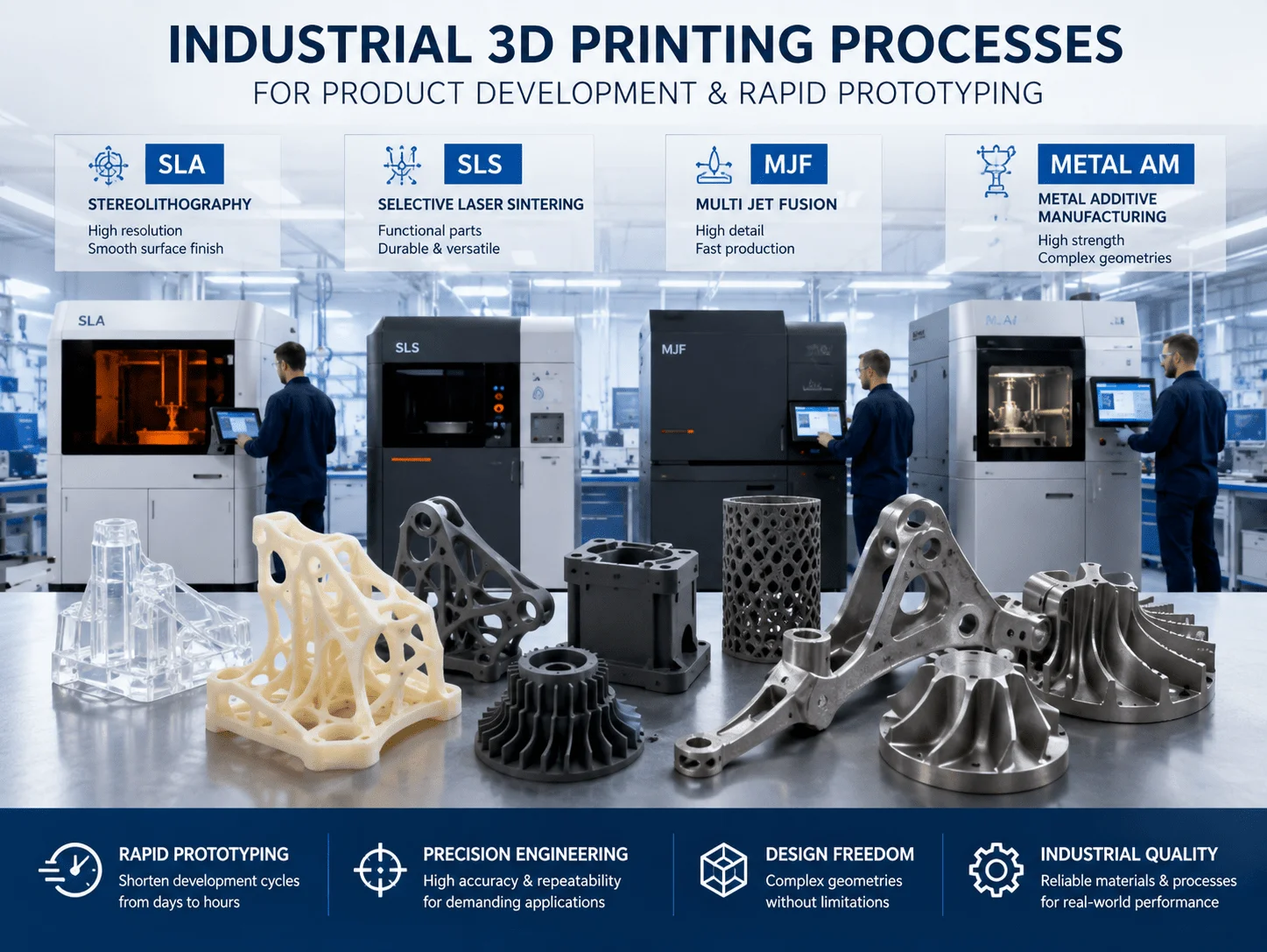

How Industrial 3D Printing Supports Product Development
Industrial 3D printing builds components layer by layer from digital CAD data. Unlike CNC machining, which removes material from solid stock, additive manufacturing places material only where the design requires it. This enables internal channels, organic surfaces, lattice structures, consolidated assemblies, and customized components that may be difficult to produce conventionally.
The main industrial processes include:
SLA for high-detail resin parts and smooth visual surfaces
SLS for durable nylon prototypes without conventional support structures
MJF for repeatable nylon components and efficient batch production
FDM for large concept models, fixtures, and economical functional parts
Metal powder-bed fusion for complex aluminum, stainless steel, titanium, and nickel-alloy components
| Process | Primary Strength | Typical Limitation | Common B2B Use |
| SLA | Fine detail and smooth finish | Some resins are brittle | Medical models, cosmetic housings |
| SLS | Durable nylon and complex geometry | Grainy surface | Functional prototypes, ducts, brackets |
| MJF | Consistent nylon batch production | Limited material selection | Low-volume engineering parts |
| FDM | Low cost and large build size | Visible layers and directional strength | Fixtures, concept models |
| Metal printing | Complex high-strength geometry | High cost and post-processing | Aerospace, medical, energy |
Process selection should begin with the test objective. A prototype used to review appearance does not need the same material, tolerance, or documentation as a component used for heat, load, sealing, or clinical evaluation.
High-Performance Applications & Material Selection

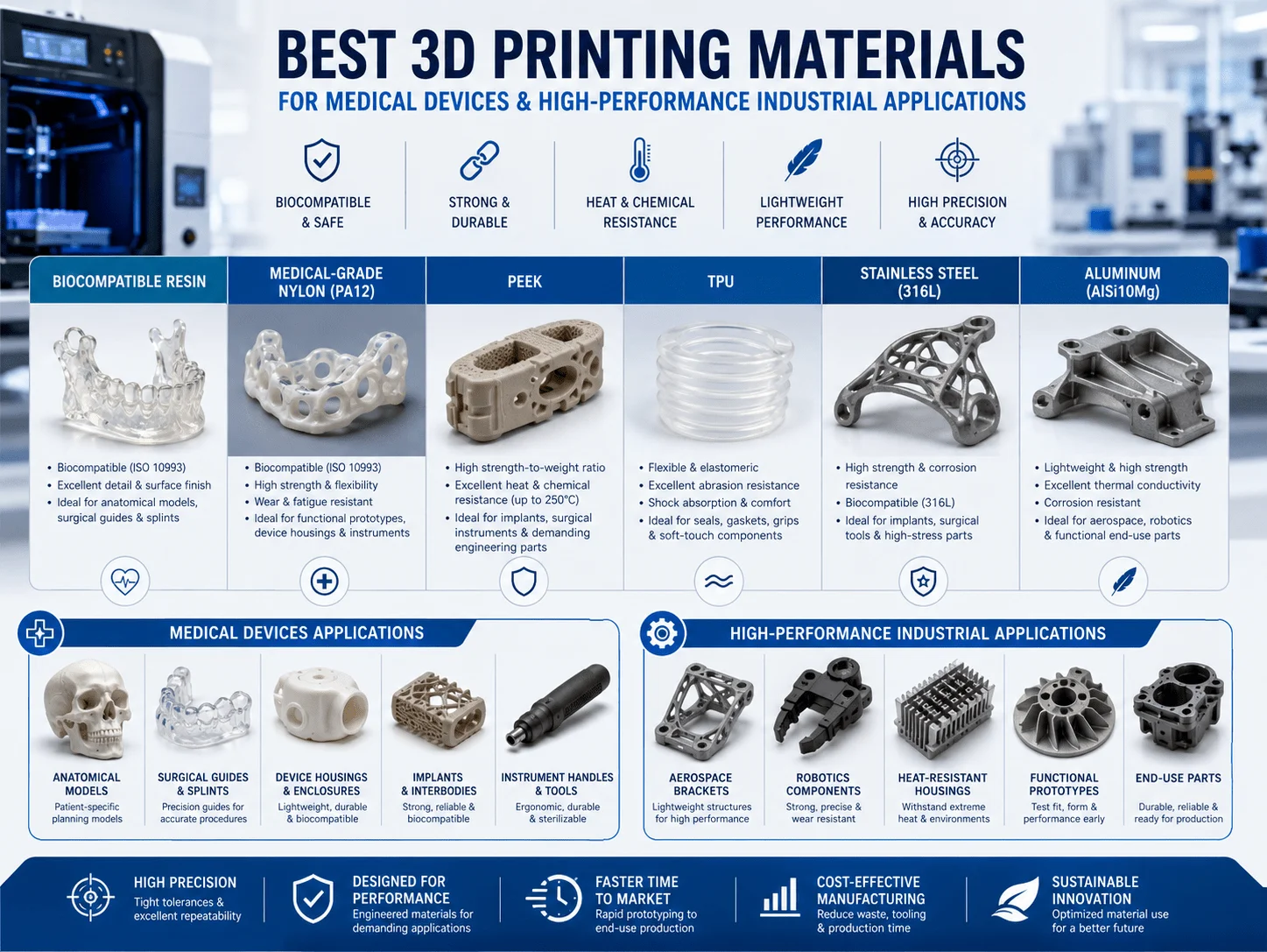

Medical Innovation: Finding the best 3d printing materials for medical devices
Finding the best 3d printing materials for medical devices requires careful separation of visual, functional, research, and patient-contact requirements. A material suitable for an anatomical model may not be appropriate for a surgical guide, wearable housing, fluid-contact component, or sterilizable instrument.
SLA is widely used for anatomical models because it reproduces fine detail and can provide transparent, flexible, or colored structures. Specialized photopolymers may also offer documented biocompatibility for defined contact conditions. However, engineering teams must verify the exact grade, test standard, contact duration, post-curing method, and sterilization compatibility.
SLS and MJF nylons are useful for durable housings, clips, brackets, instrument components, and functional assembly models. Nylon parts generally resist impact better than standard photopolymer parts and can support repeated fit checks. High-performance polymers such as PEEK and PEKK may provide stronger heat and chemical resistance, but they require specialized high-temperature equipment and are significantly more expensive.
Common medical prototype applications include:
Anatomical and pathology models
Surgical planning guides
Diagnostic device enclosures
Instrument handles
Wearable housings
Laboratory fixtures
Ergonomic evaluation models
Fluid-routing concepts
Training and demonstration parts
Material selection should consider cleaning agents, moisture, UV exposure, creep, skin contact, repeated assembly, and operating temperature. Autoclave sterilization is especially demanding. Many standard resins cannot withstand repeated high-temperature steam cycles without distortion or degradation.
For regulated projects, documentation is part of the engineering requirement. A supplier should be able to provide material data, batch traceability where required, post-processing information, and a clear statement of what the printed part is intended to validate.
Aerospace, Robotics, and Smart-Hardware Applications
Aerospace teams use additive manufacturing for ducts, lightweight brackets, sensor mounts, UAV components, thermal structures, and complex test hardware. Robotics engineers use it for grippers, cable guides, sensor housings, end-effectors, protective covers, and customized automation fixtures.
The process creates the most value when complexity serves a function. A lattice may reduce weight, an internal channel may route air, or a consolidated design may replace several assembled components. Complexity that adds no functional benefit can increase inspection, cleaning, and support-removal costs.
For consumer electronics, additive manufacturing enables fast evaluation of connector alignment, button travel, display position, internal clearances, battery fit, airflow, and user ergonomics. A team can test several housing versions before investing in injection molding.
Engineering Standards & Process Trade-Offs
Dimensional Accuracy: Managing high precision 3d printing tolerances
Managing high precision 3d printing tolerances begins with realistic expectations. Additive manufacturing accuracy varies with process, machine calibration, material, build orientation, part size, wall thickness, support strategy, and post-processing.
There is no single tolerance that applies to all printed features. A small SLA component may reproduce fine details accurately, while a large thin-walled part may warp during printing or post-curing. An SLS housing may maintain useful overall geometry but require machining for a precision bearing seat. Metal-printed components may need stress relief and CNC finishing on critical interfaces.
| Process | Practical Accuracy Character | Surface Character | Common Compensation |
| SLA | High detail on small parts | Smooth with support marks | Sanding, reaming, post-cure control |
| SLS | Good functional accuracy | Powder-textured | Machining or design clearance |
| MJF | Consistent batch accuracy | Fine grain | Hole finishing and controlled scaling |
| FDM | Moderate, orientation-sensitive | Visible layer lines | Increased clearance and machining |
| Metal printing | Process-dependent | Rough before finishing | Heat treatment and CNC machining |
Engineers should classify dimensions into three groups:
1.Critical functional dimensions
2.Important assembly dimensions
3.Non-critical visual dimensions
Critical features may include sealing surfaces, bearing seats, alignment bores, optical interfaces, threads, or press fits. These features should be identified on the 2D drawing and may require secondary machining rather than relying on the as-printed condition.
Clearance is equally important. Snap fits, sliding interfaces, and assembled housings need process-specific gaps. A clearance that works in SLA may not work in SLS or FDM because surface texture, layer behavior, and dimensional variation differ.
Build orientation influences strength and accuracy. A feature aligned with the layer direction may behave differently from the same feature oriented across layers. Supports can also leave marks or cause local distortion, particularly on cosmetic surfaces.
A capable supplier should review:
Datum locations
Build orientation
Support placement
Hole direction
Minimum wall thickness
Minimum feature size
Tolerance-critical surfaces
Post-processing allowance
Inspection access
Over-tolerancing increases rejection risk and cost without improving the prototype. The drawing should reserve tight limits for features that truly control function.

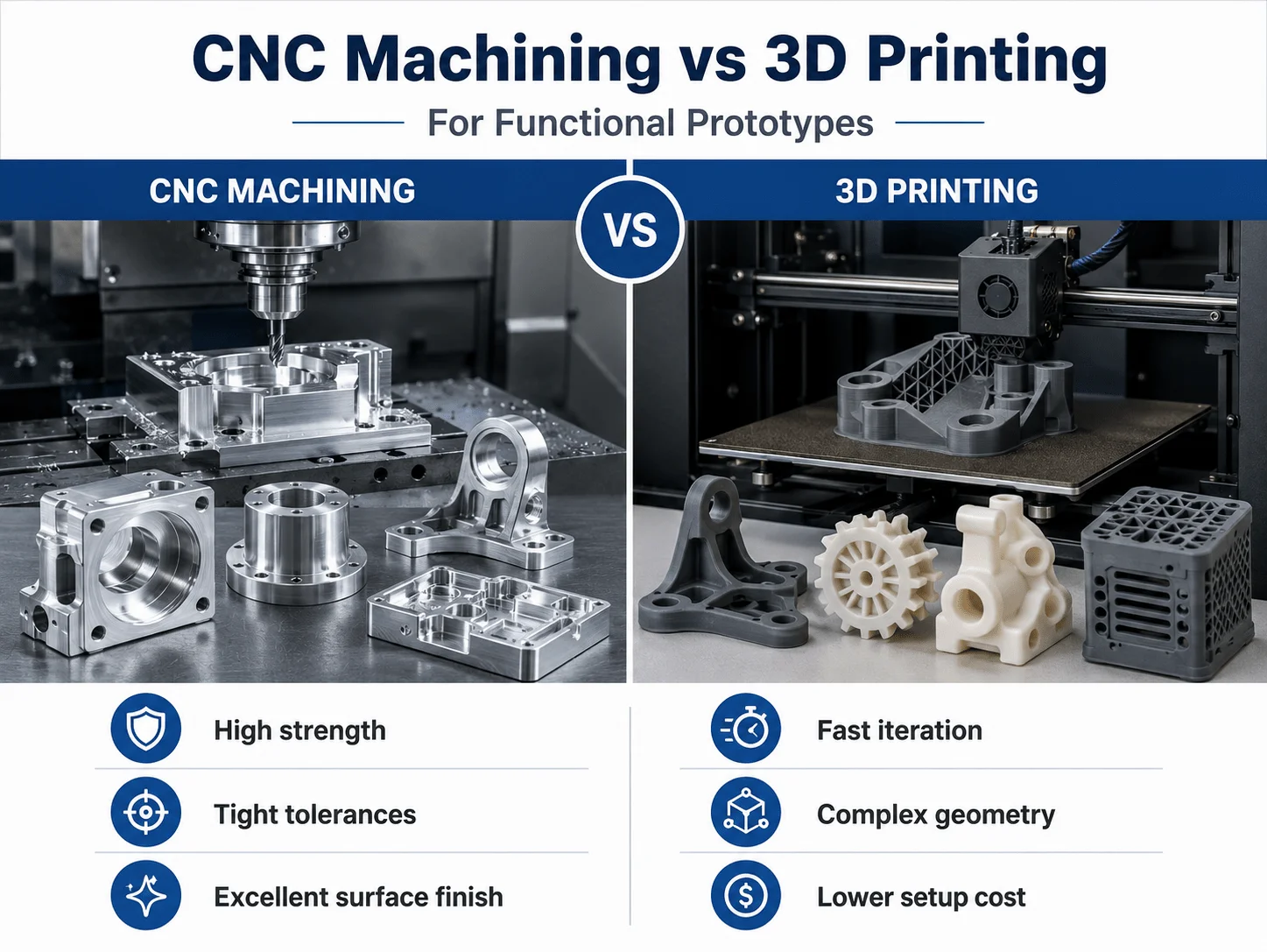

Process Selection: cnc machining vs 3d printing for functional prototypes
The cnc machining vs 3d printing for functional prototypes decision should be based on the purpose of the test rather than the apparent price of a single component.
CNC machining uses production-grade metal or plastic stock. It typically provides predictable mechanical properties, tighter tolerances, smoother surfaces, and more reliable threaded, sealing, or bearing features.
3D printing provides exceptional geometric freedom and fast iteration. It can manufacture internal channels, complex curves, lightweight structures, and consolidated assemblies without dedicated tooling.
| Evaluation Factor | CNC Machining | 3D Printing |
| Material behavior | Production-grade stock | Process- and orientation-dependent |
| Tolerance | Generally tighter | Varies significantly by process |
| Surface finish | Smooth and predictable | Usually needs post-processing |
| Complex internal geometry | Limited by tool access | Major advantage |
| Design revisions | Fast, but requires new machining | Extremely fast from updated CAD |
| Simple part cost | Often competitive | Depends on build volume |
| Complex part cost | May rise quickly | Often more favorable |
| Best use | Precision functional testing | Geometric and rapid-iteration testing |
Choose CNC machining when the component requires tight bearing fits, smooth sealing surfaces, high load capacity, reliable threads, production-grade metal, or accurate flatness.
Choose 3D printing when the component requires complex geometry, several rapid revisions, internal channels, customization, lightweight structures, or very short lead time.
A hybrid strategy is often the best answer. A team may print the main housing and machine critical interfaces. A robotics company may print a complex cable-routing bracket while machining its shaft and bearing seats. A medical team may use SLA for ergonomic review, then CNC machine the final validation component from PEEK or stainless steel.

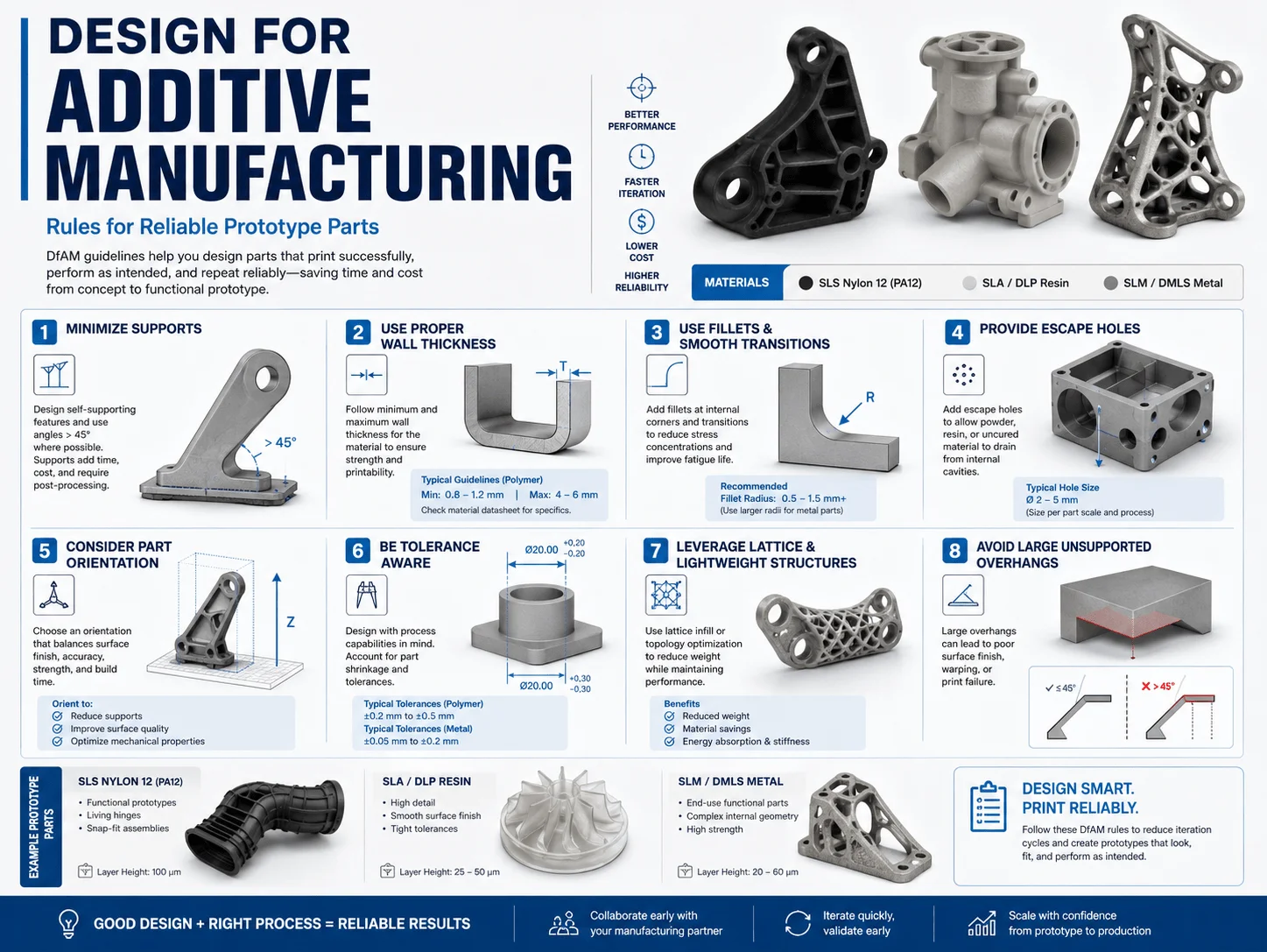

Designing Parts for Reliable 3D Printing
Design for additive manufacturing should improve printability without compromising the component’s intended function. The exact rules vary by process, but several principles apply broadly.
Use Stable Wall Thicknesses
Very thin walls may distort, break during handling, or print inconsistently. Excessively thick walls increase material use, cooling time, and residual stress. Wall thickness should be selected according to process, part size, material, and loading.
Reduce Unsupported Overhangs
FDM, SLA, and metal printing often require supports beneath overhangs. Supports increase material consumption, build time, removal labor, and cosmetic finishing.
Changing the part orientation, adjusting the angle, or redesigning the feature may reduce supports.
Include Escape and Drainage Openings
Hollow SLA parts need drain holes so uncured resin can escape. SLS and MJF parts with internal cavities need access for powder removal. Metal-printed channels may also require powder evacuation and inspection planning.
Avoid Trapped Internal Volumes
A mathematically closed cavity may trap resin or powder permanently. Internal channels should be large and accessible enough for cleaning.
Design Threads Strategically
Large threads may print successfully, but critical or frequently used threads are usually better machined, tapped, or fitted with inserts. Small printed threads can be inconsistent and wear quickly.
Plan Cosmetic Surfaces
Support marks, stair-stepping, and texture vary by orientation. Class-A surfaces should be identified so the supplier can orient the part and position supports appropriately.
Consider Inspection Early
Complex internal features can be difficult to verify. When a channel, wall, or cavity is functionally critical, define how it will be inspected before manufacturing begins.
Procurement Strategy & Bridge Production
Cost Optimization: Utilizing 3d printing for low volume plastic parts
Using 3d printing for low volume plastic parts can reduce financial risk during market validation, certification preparation, pilot production, and bridge manufacturing. For batches of approximately 10 to 100 components, additive manufacturing may avoid the upfront cost and design lock-in of injection molding.
The process is particularly attractive when:
The design may still change
Several product variants are required
Annual demand is uncertain
Internal geometry is complex
Delivery time is critical
Inventory must remain low
Customization creates customer value
The cost of a printed component depends on material volume, machine time, build height, support structures, packing efficiency, post-processing, inspection, and quantity.
| Cost Driver | Why It Matters | Cost-Control Strategy |
| Material volume | More resin, powder, or filament is consumed | Hollow thick parts where appropriate |
| Build height | Taller builds often take longer | Reorient the part carefully |
| Supports | Increase material and labor | Redesign overhangs and support access |
| Packing density | Affects SLS and MJF batch efficiency | Combine compatible parts and quantities |
| Surface finishing | Adds sanding, coating, or polishing | Finish only visible or functional areas |
| Inspection | Complex reports increase labor | Focus detailed inspection on critical features |
| Rush delivery | Reduces scheduling flexibility | Release stable files and requirements early |
Hollowing can lower material cost, but the resulting shell must remain strong enough for handling and testing. Drainage holes must also be added for SLA.
SLS and MJF costs can improve when several parts are nested efficiently in one build. Ordering a stable batch rather than several isolated urgent parts may lower the average unit cost.
Post-processing often becomes the hidden cost. Sanding, painting, dyeing, smoothing, tapping, insert installation, and assembly can exceed the printing cost for highly cosmetic products. Procurement teams should compare complete delivered-part pricing rather than machine output alone.
Bridge Production Versus Injection Molding
| Quantity Range | 3D Printing Strategy | Injection Molding Strategy |
| 1–10 | Strong choice for prototypes | Tooling is rarely justified |
| 10–50 | Flexible for validation batches | High upfront investment |
| 50–100 | Competitive for complex or customized parts | May suit simple stable designs |
| 100–500 | Depends on size, finish, and repeat demand | Unit economics become stronger |
| 500+ | Best for customization or difficult geometry | Often preferred for stable high-volume parts |
Injection molding usually produces a lower unit cost at scale, but the buyer must pay for tooling and commit to a relatively stable design. Additive manufacturing preserves flexibility and allows the team to update the design between batches.
This makes it valuable for medical-device trials, robotics pilot systems, industrial replacement parts, specialized electronics, scientific equipment, and early market launches.
Application Scenarios
Medical Diagnostic Housing
A medical startup needs 30 housings for usability and assembly testing. SLA provides smooth appearance and fine detail, while SLS or MJF may be better for repeated handling and functional clips. Critical interfaces can be machined after printing.
Robotic Gripper
A robotics company needs a lightweight gripper with internal air channels. SLS nylon or metal printing can consolidate several components and eliminate difficult conventional drilling.
Aerospace Duct
An aerospace R&D team needs a complex lightweight duct for airflow testing. High-performance polymer printing supports rapid geometry changes before production qualification.
Consumer Electronics Pilot Run
A hardware company requires 80 enclosures for a limited launch. MJF avoids mold investment and allows the design to be updated after customer feedback.
Industrial Replacement Part
A factory needs a discontinued polymer bracket. 3D scanning, CAD reconstruction, and industrial printing may provide a practical replacement without rebuilding legacy tooling.
Automotive Development Fixture
An automotive team needs custom inspection nests and assembly aids. FDM or SLS can produce lightweight fixtures faster than conventional machining for many non-wear applications.
Selecting an Industrial 3D Printing Partner
A supplier should recommend the process based on part function rather than forcing every project into the same machine.
A capable manufacturing partner should provide:
SLA, SLS, MJF, FDM, and metal printing options
Material selection guidance
DFM review
Build-orientation planning
Support strategy
Surface finishing
Thread and insert installation
Dimensional inspection
CNC post-machining
Low-volume production
Revision control and secure file handling
A complete RFQ should include:
STEP or native CAD data
STL or 3MF where appropriate
Dimensioned 2D drawings
Material-performance requirements
Quantity
Critical tolerances
Surface finish
Color
Intended application
Inspection requirements
Delivery target
The supplier should ask whether the part is visual, functional, sterilizable, load-bearing, chemically exposed, or intended for future molding. These questions demonstrate that the manufacturing recommendation is based on the real engineering objective.
Frequently Asked Questions
Which 3D printing process is best for functional prototypes?
SLS and MJF are strong options for durable nylon components. FDM is practical for large fixtures and early functional models. SLA is preferred for fine detail and appearance, while metal printing supports selected high-performance components.
What material is best for a medical prototype?
The answer depends on intended use, contact conditions, sterilization, temperature, and documentation. Specialized resins, nylon, PEEK, PEKK, titanium, and stainless steel may all be suitable for different medical applications.
How accurate is industrial 3D printing?
Accuracy varies by process, material, geometry, orientation, and part size. SLA generally provides fine detail, while SLS and MJF offer useful functional accuracy. Critical features may require secondary machining.
Can 3D printing achieve CNC-level tolerances?
Not consistently across all geometries. CNC machining usually provides tighter and more predictable tolerances. Printed parts can be machined after production when critical interfaces require higher accuracy.
Is 3D printing cheaper than CNC machining?
It depends on geometry, material, quantity, and finish. Printing is often more economical for complex shapes and rapid revisions. CNC machining may be more cost-effective for simple precision parts.
Can 3D printing replace injection molding?
It can replace molding for prototypes, customized parts, bridge production, and some low-volume products. Injection molding usually provides better unit economics and consistency for high-volume stable designs.
How can printing costs be reduced?
Reduce unnecessary material, optimize orientation, minimize supports, combine parts into efficient builds, use standard materials, and limit cosmetic finishing to important surfaces.
What files should be submitted for a quote?
Provide a solid 3D CAD model, relevant mesh files, a 2D drawing for critical dimensions, material requirements, quantity, finish, inspection needs, and delivery expectations.
How long does industrial 3D printing take?
Simple parts may be produced in several working days. Large builds, metal parts, specialized materials, extensive finishing, and full inspection require additional lead time.
Should printed threads be used?
Printed threads can work for large, low-load features, but critical or frequently assembled threads should usually be tapped, machined, or fitted with metal inserts.
3D printing provides a flexible bridge between digital design and physical product validation. It allows engineering teams to test geometry, ergonomics, assembly, airflow, internal channels, and limited functional performance without waiting for production tooling.
Successful projects match the process and material to the real test. SLA supports smooth detailed models. SLS and MJF provide durable nylon components. FDM offers economical large-format parts. Metal additive manufacturing unlocks complex high-performance geometry, while CNC machining remains the stronger choice for many tight-tolerance and production-material applications.
